Connector Type:
5-Pin Circular Automotive Connector with Secondary Lock
Visual Features:
- Housing Color: Black

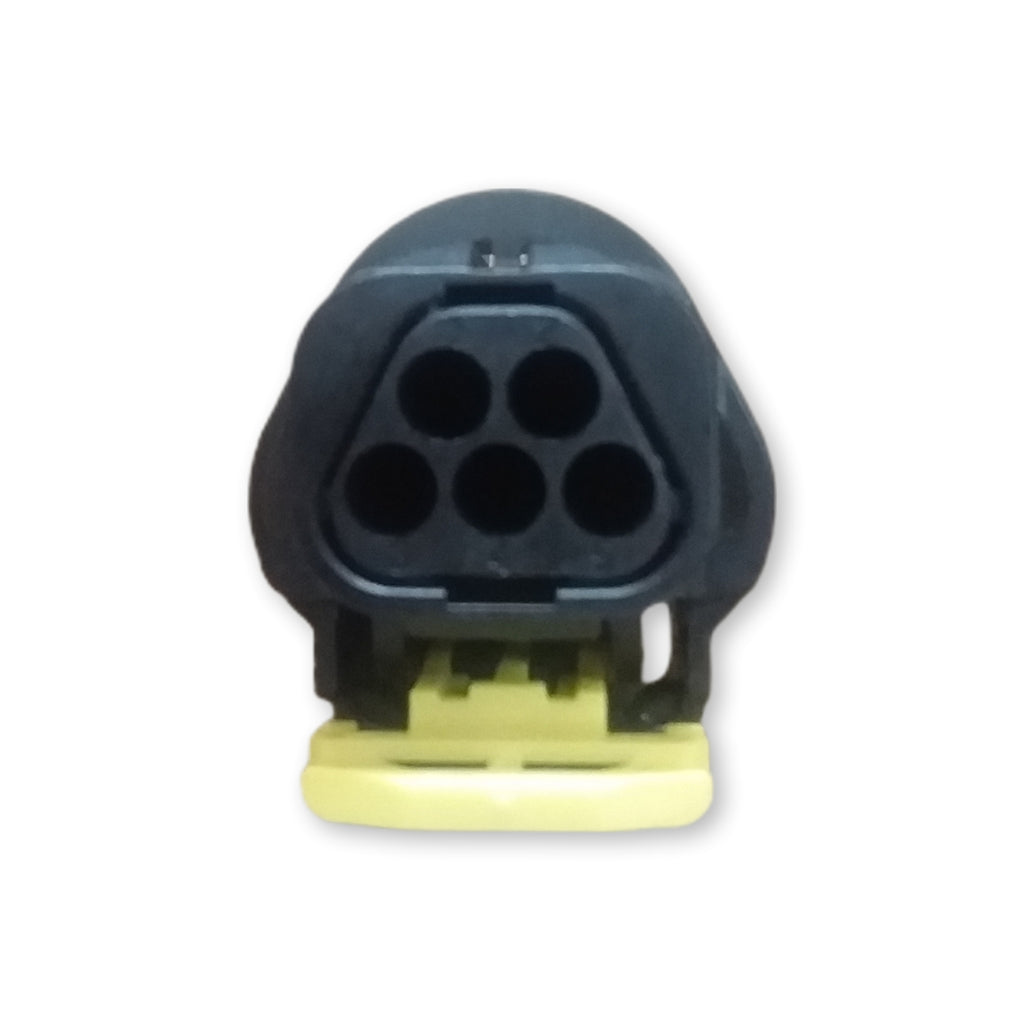

- Pin Configuration: 5 circular pin cavities arranged in a pentagon-like pattern
- Locking Mechanism: Yellow secondary lock tab at the base for secure mating
- Sealing: Likely weatherproof with internal rubber grommets (not visible externally)
Typical Applications:
- Engine sensors (e.g., MAP, MAF, camshaft position)
- Transmission control modules
- ABS or ESP systems
- Throttle body or EGR valve connections
Common OEM Usage:
This style is frequently seen in Bosch-manufactured sensor systems, used by brands like Volkswagen, Audi, BMW, Mercedes-Benz, Toyota, and Nissan. However, exact vehicle compatibility depends on the part number, which is usually molded or printed on the connector body or its mating plug.
